Product categories稱重傳感器_測力傳感器
一、Features 主要特點
S-Type load cell
Senior aluminum
Easy to install, stabile & reliable
Suitable for tension measurements, batching systems, industrial scales and package systems, etc
S型傳感器
優質合金鋼材質
安裝簡便、快捷，穩定可靠
適用于材料試驗機、配料秤、機電結合稱和包裝秤等
二、Capacities 量程
5kg、10kg、15kg、20kg、50kg、100kg、200kg…..20t
三、Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.02% of rated output |
|
Nonlinearity |
非線性 |
±0.02% of rated output |
|
Hysteresis |
滯后 |
±0.02% of rated output |
|
Repeatability |
重復性 |
±0.02% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.02% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |
|

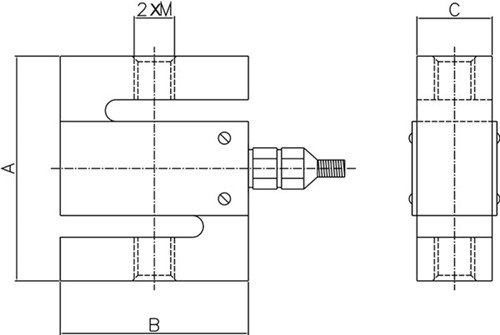

量程 |
A |
B |
C |
M |
|
5-50 |
64 |
51 |
12.7 |
M8 |
|
100-700 |
76 |
51 |
19.1 |
M12 |
|
1000-1500 |
76 |
51 |
25.4 |
M12 |
|
2000-5000 |
108 |
76.2 |
25.4 |
M20 |
|
7500-10000 |
178 |
127 |
51 |
M30 |
|
20000 |
188 |
140 |
60 |
M36×3 |
