Product categories稱重傳感器_測力傳感器
一、Features 主要特點
Pull pressure sensorl
Sensor elastic body made of alloysteel or stainless steel
Adhesive sealed, surface plating
Waterproof, anti-corrosion,
protection grade reaches IP66.
拉壓力傳感器
傳感器彈性體采用合金鋼或者不銹鋼材質
膠密封處理 ，表面鍍鎳
防水，防腐蝕，防護等級達到 IP66
二、Capacities 量程
100kg、200kg、300kg、500kg、700kg、1t、2t、3t、5t、10t 、15t、20t
三、Specification 技術參數
Rated Output
額定輸出
2.0mV/V ±0.1%
Zero Balance
零點平衡
±1% of rated output
Creep after 30 minutes
蠕變
±0.05% of rated output
Nonlinearity
非線性
±0.05% of rated output
Hysteresis
滯后
±0.05% of rated output
Repeatability
重復性
±0.05% of rated output
Temp. effect on output
靈敏度溫漂
≤0.02% of applied output/oC
Temp. effect on zero
零點溫漂
≤0.02% of applied output/oC
Safe Temp. Range
可用溫度范圍
-10oC to + 70oC
Temp. Compensated
溫度補償范圍
-10oC to + 40oC
Safe Overload
安全載荷
150%
Input Impedance
輸入阻抗
387 ohm ± 20 ohm
Output Impedance
輸出阻抗
350 ohm ± 5 ohm
Rated Excitation
推薦激勵電壓
10V DC/AC
Maximum Excitation
較大激勵電壓
15V DC/AC

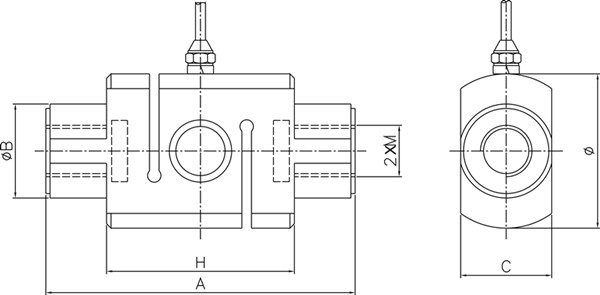

四、Dimensions 尺寸
|
量程 |
A |
H |
ΦB |
Φ |
M |
C |
|
0.1-0.5t |
88 |
58 |
28 |
44 |
16×1.5 |
26 |
|
0.7t |
88 |
58 |
32 |
44 |
16×1.5 |
30 |
|
1-5t |
120 |
68 |
51 |
63 |
22 |
48 |
|
7-15t |
138 |
94 |
60 |
76 |
30 |
56 |
|
20t |
156 |
108 |
68.5 |
88 |
36×3 |
76 |
