Product categories稱重傳感器_測力傳感器
一、Features 主要特點
High quality stainless steel material
Low height,all sealed
Apply to small space.
Suitable for pull pressure measurement and control
優質不銹鋼材質
體積小，全密封
適用于空間有限的場合使用
使用于拉壓力的測量與控制
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg、200kg、300kg、500kg、1000kg、2000kg
三、Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.3% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.02% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.02% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

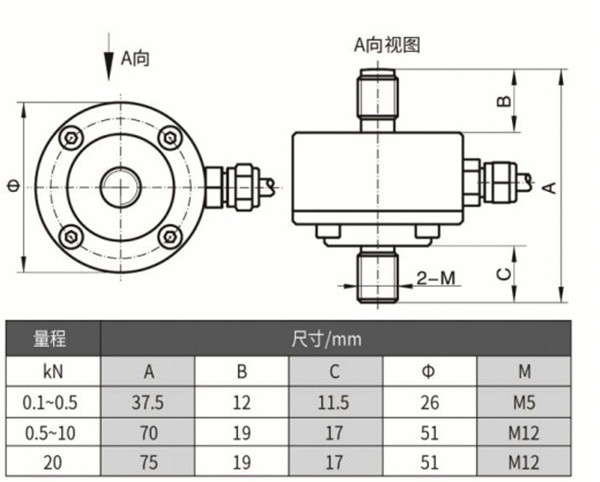

四、Dimensions 尺寸
