一、Features 主要特點
High quality stainless steel material
Small and easy to install
It is mainly used in the field of force value detection with small installation space, such as key touch tester, robot hand grip, press mounting machine, etc
優質不銹鋼材質
外形小巧 便于安裝
主要應用于按鍵手感度測試儀、機器人手抓力、壓裝機等安裝空間小的力值檢測領域
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg
三、Specification 技術參數
|
Rated Output |
額定輸出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.5% of rated output |
|
Nonlinearity |
非線性 |
±0.5% of rated output |
|
Repeatability |
重復性 |
±0.5% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.05% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
5V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

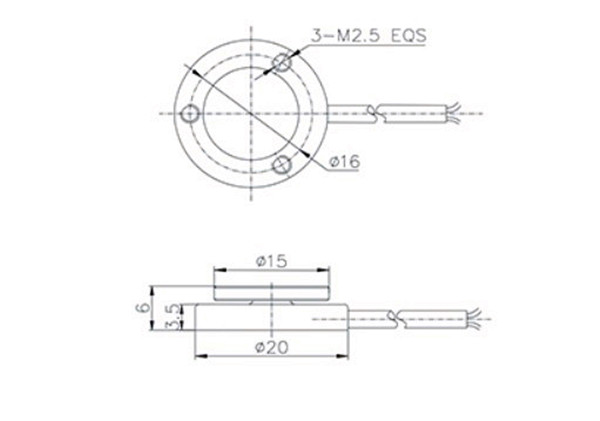

四、Dimensions 尺寸
