Product categories稱重傳感器_測力傳感器
一、Features 主要特點
Strain force sensor
Can measure the dynamic and static pressure to force
Can withstand the cornering force
In accordance with the DIN standard EN 60529, corrosion prevention
應變技術力傳感器
可以測量動態和靜態壓向力
可抵御測向力
按照 DIN EN 60529 標準, 防銹蝕
二、Capacities 量程
1kg、5kg、10kg、20kg、30kg、40kg、50kg、100kg、200kg
三、Specification 技術參數
|
Rated Output |
額定輸出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.3% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.02% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.02% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

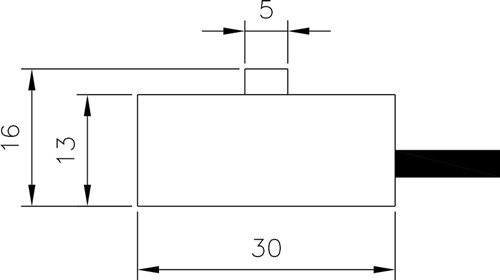

四、Dimensions 尺寸
