Product categories稱重傳感器_測力傳感器
一 Features 主要特點
Alloy steel material, cylindrical structure
Wide range, strong anti overload ability
The measuring equipment is suitable for the large tonnage of medicine and chemical industry, Gui Daoheng, storage scale, material tank and so on.
合金鋼材質、圓柱式結構
量程范圍廣、抗過載能力強
適用于醫藥化工、軌道衡、倉儲秤、料罐等大噸位的測量設備
二、Capacities 量程
200kg、300kg、500kg、700Kg、1t、3t、5t、7t、10t~200t
三、Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.05% of rated output |
|
Nonlinearity |
非線性 |
±0.05% of rated output |
|
Repeatability |
重復性 |
±0.05% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.03% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.03% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

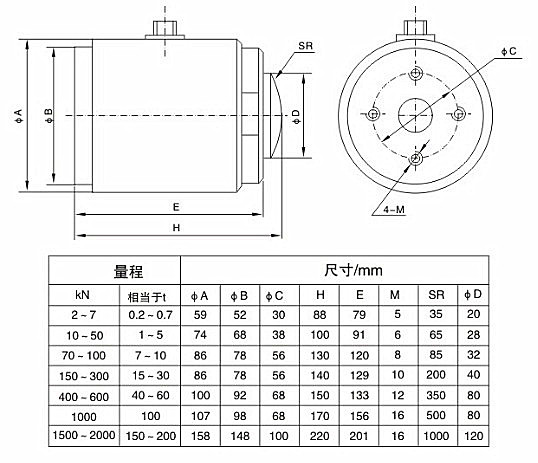

四、Dimensions 尺寸
